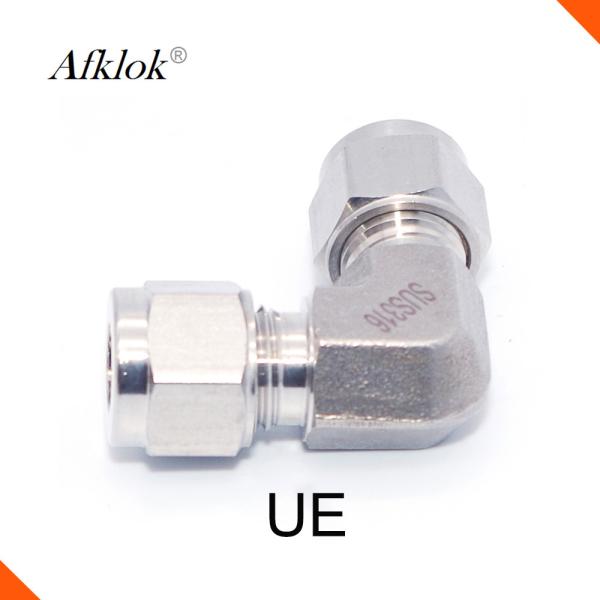

SS316 Stainless Steel Union Elbow Compression Pipe Fittings

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : UE

Supply Ability : 10000 Set/Sets per Week

Packaging Details : Export packing

MOQ : >=1 Sets

Price : Negotiable

Certification : CE

Type : Union

Material : Stainless Steel, SS316

Technics : Forged

Connection : ferrule

Shape : Equal

Head Code : Hexagon

Application : Water Gas

Medium : Gas

Contact Now

Product Description

Product Name	Forged 316 Stainless steel fitting Union Elbow 90 degree elbow pipe fitting
Material	stainless steel 316
Connect	Ferrule OD
Medium	Gas
Brade	AFK
Connection	Tube fitting
Used	Chemical and Petrochemical

Union Elbow (Metric)
Tube O.D.	Catalog Number	A	D	E	F	G	H
3	UE-3-0	22.3	12.9	2	12	10	15.7
4	UE-4-0	25.4	13.7	3	12	12	18.8
6	UE-6-0	27.0	15.3	5	12	14	19.6
8	UE-3-0	28.8	16.2	6	14	17	21.3
10	UE-10-0	31.5	17.2	8	17	19	23.9
12	UE-12-0	36.0	22.8	10	22	22	25.9
14	UE-14-0	38.0	24.4	10	24	27	27.9
15	UE-15-0	38.8	24.4	11	24	27	27.9
16	UE-16-0	38.0	24.4	12	24	27	27.9
18	UE-18-0	39.8	24.4	14	27	30	29.7
20	UE-20-0	44.6	26.0	16	30	32	34.5
22	UE-22-0	44.6	26.0	18	30	32	34.5
25	UE-25-0	49.1	31.3	21	34	38	36.5

Fractional
1/16	UE-005-0	17.8	8.6	1	10	10	14.0
1/8	UE-01-0	22.4	12.7	3	12	12	15.8
3/16	UE-015-0	25.4	13.7	3	12	12	18.8
1/4	UE-02-0	27.0	15.2	5	12	14	19.6
3/8	UE-03-0	30.5	16.8	8	17	17	21.3
1/2	UE-04-0	36.0	22.8	10	22	22	23.1
5/8	UE-05-0	38.1	24.4	12	24	27	26.0
3/4	UE-06-0	40.0	24.4	15	27	30	29.7
1	UE-08-0	49.0	26.0	21	34	38	36.8

FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve

4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
