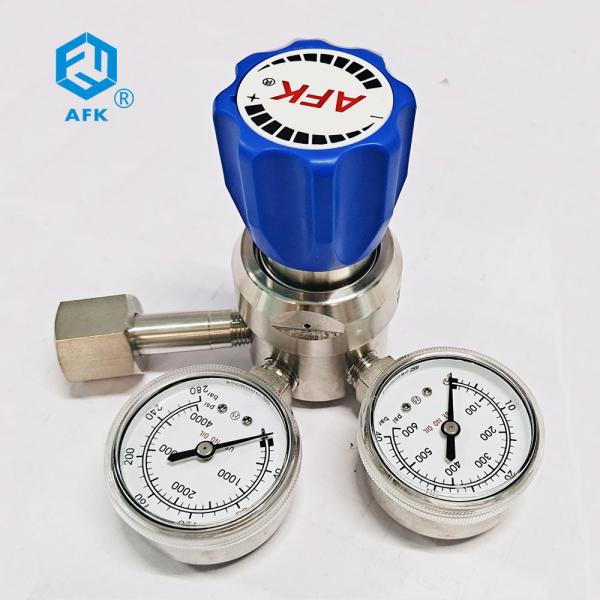

W21.8 RH Stainless Steel Pressure Regulator R11 Cylinder Connector PTEE

Brand Name : AFK

Model Number : R11

Certification : CE

Place of Origin : China

MOQ : 1~10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 10

Packaging Details : Expotrt Packing

After-sales service provided : Online support

Material : Stainless Steel,SS304/SS316L

Warranty : 1 Year

Application : Industry Equipment

Key words : Stainless Steel Pressure Regulator

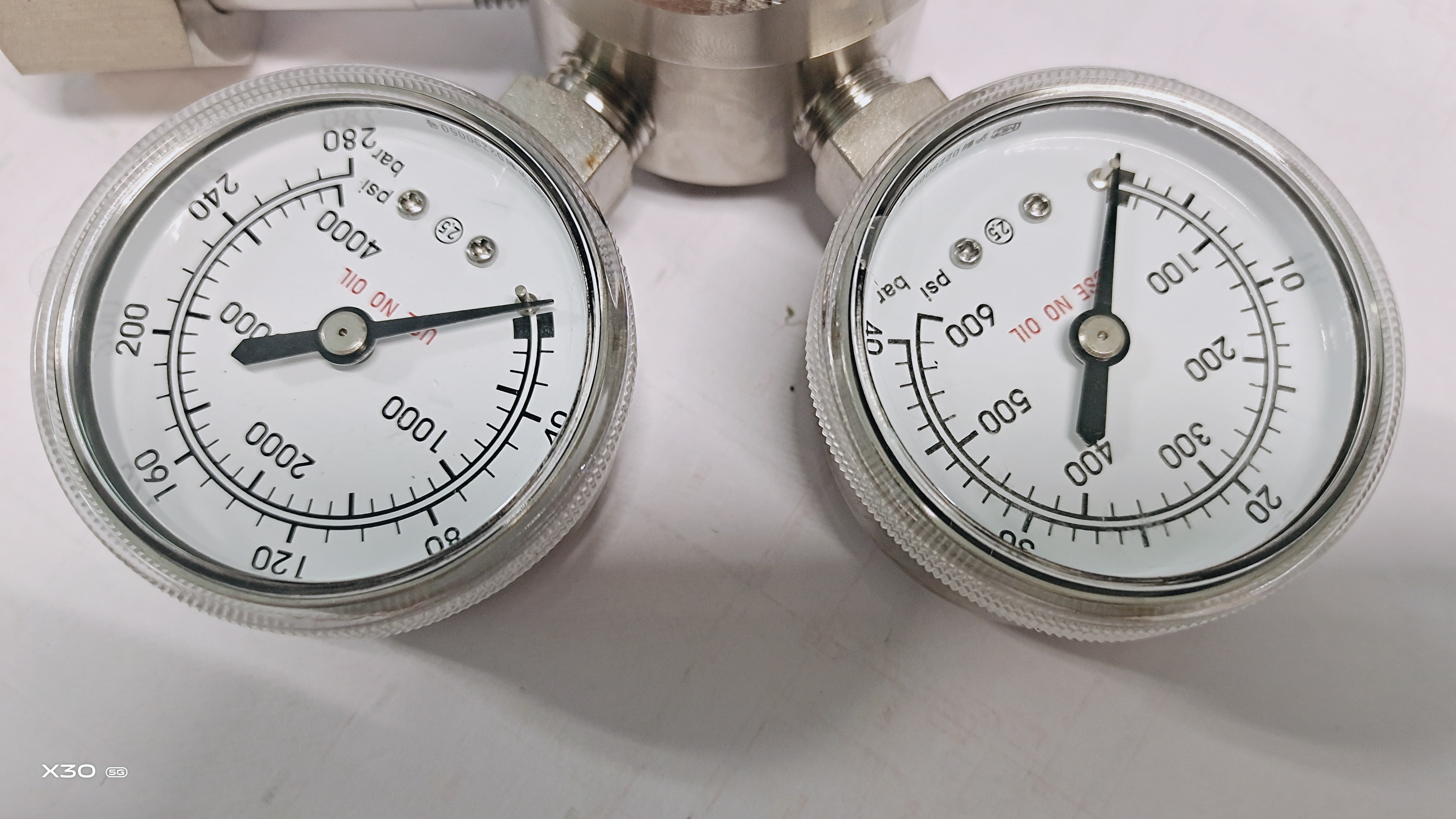

Name : Double Gauge Pressure Regulator

Contact Now

Product Parameenters:

Maximum Inlet Pressure	500,3000psig
Outlet Pressure Ranges	0~25, 0~50, 0~50,0~250,0~500psig
Safety test pressure	1.5 times maximum inlet pressure
Operating Temperature	-40°F to 165°F / -40°c to 74°c
Leakage Rate AgainstAtmosphere	2*10-8atm cc/sec he
Cv value	0.08

Materials:

Body	316L,Brass
Bonnet	316L. Brass
Diafragm	316L
strainer	316L(10mm)
Seat	PCTFE,PTEE,Vespel
Spring	316L
Plunger valve core	316L

Application : 1.Laboratory 2.Gas Chromatography 3.Gas Lasers 4.Gas Bus-bar 5.Petrochemical Industry 6.Testing Equipment Design Feature: Single-stage pressure reducer Maternal and diaphragm use hard seal form Body NPT:1/4”NPT(F) The internal structure easy to purge Can set filters Can use a panel or wall mounting

W21.8 RH Stainless Steel Pressure Regulator R11 Cylinder Connector PTEE

Ordering Information

R11	L	B	B	D	G	00	02	P
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure Guage	Inlet size	Outlet size	Mark
R11	L:316	A	D:3000 psi	F:0-500psig	G:Mpa guage	00:1/4″NPT(F)	00:1/4″NPT(F)	P:Panel mounting
	B:Brass	B	E:2200 psi	G:0-250psig	P:Psig/Bar Guage	01:1/4″NPT(M)	01:1/4″NPT(M)	R:With relief valve
		D	F:500 psi	K:0-50pisg	W:No guage	23:CGGA330	10:1/8″ OD	N:Needle calve
		G		L:0-25psig		24:CGGA350	11:1/4″ OD	D:Diaphregm valve
		J				27:CGGA580	12:3/8″ OD
		M				28:CGGA660	15:6mm OD
						30:CGGA590	16:8mm OD
						52:G5/8″-RH(F)

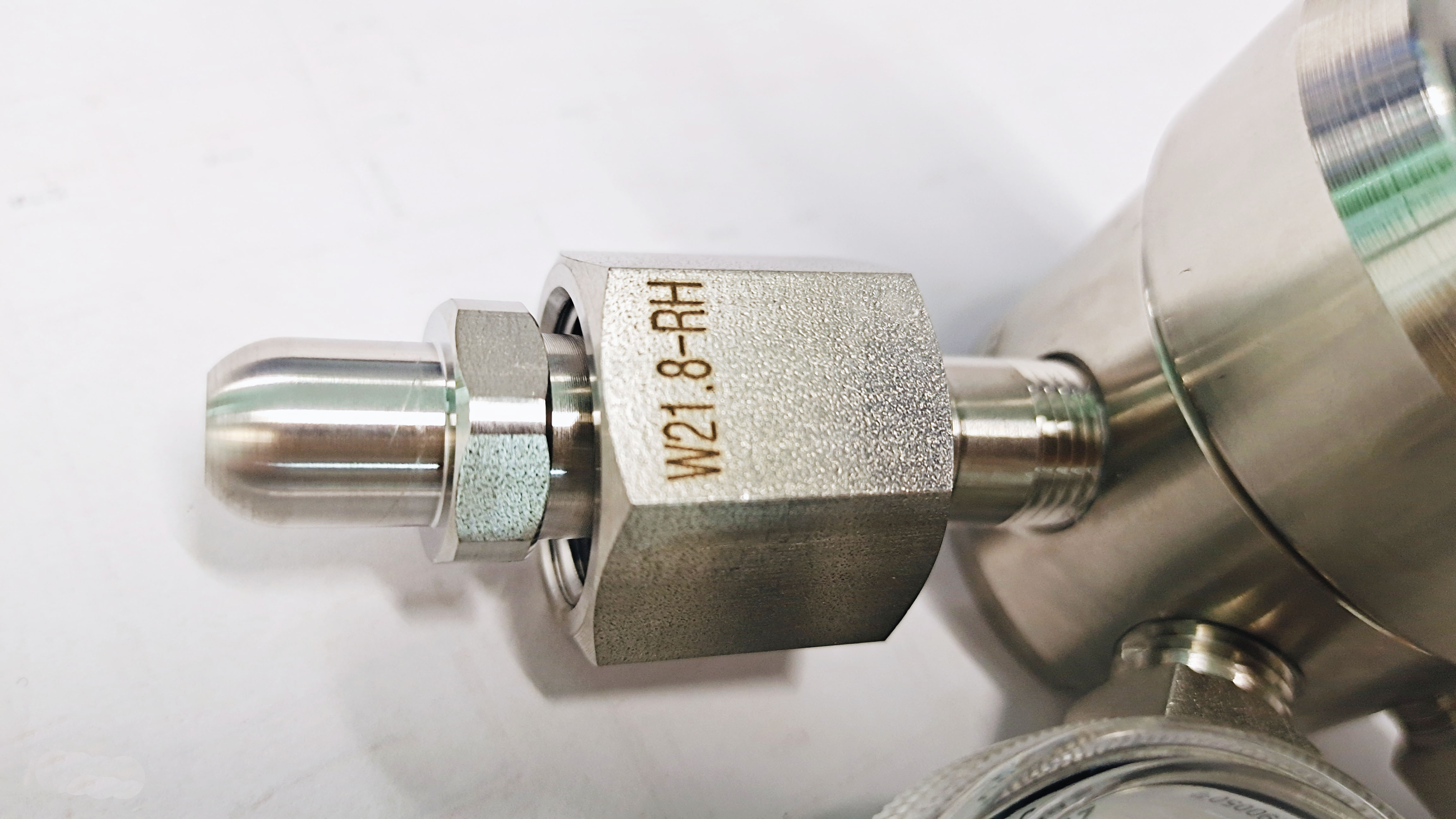

						63:W21.8-14H(F)
						64:W21.8-14LH(F)

W21.8 RH Stainless Steel Pressure Regulator R11 Cylinder Connector PTEE

Product Tags:

W21.8 RH Stainless Steel Pressure Regulator

Stainless Steel Pressure Regulator R11

PTEE Double Gauge Pressure Regulator
