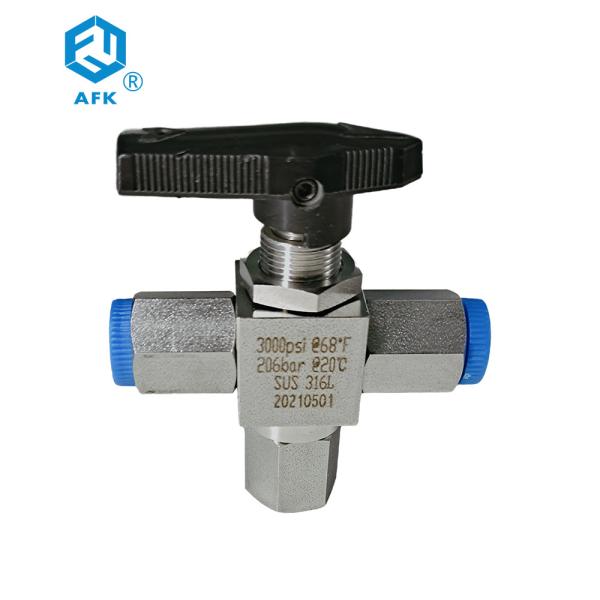

Female Thread 1/4" 3000Psi Three Way Ball Valve AFK

Brand Name : AFK

Model Number : BV

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel

Port size : Standard

Pressure : Medium Pressure,Low Pressure,3000PSI

Temperature of media : Medium Temperature,Normal Temperature,Low Temperature

Standard or nonstandard : Standard

Media : Water,Gas,Oil

Application : General

Size : 1/4" to 3/4"

Connection : Threaded

Valve type : 3way

Contact Now

Product Description

  • Switching flow path
  • Working pressure up to 3000psi (206bar)
  • The temperature range is - 53 to 148 ℃ (- 65 to 300 ° f)
  • Application of environment and heating process
  • 1 / 8 to 3 / 4 in. And 6 to 12mm termination

Female Thread (fractional)

conn./size orifice Dimensions(mm)
inlet/outlet mm In. A B C D E F

Panel hole

size

Max panel

thickness

1/8" 5.0 0.19 45.4 22.7 35.0 30.2 55 34 14.0 6.0
1/4" 5.0 0.19 52.4 26.2 35.0 33.7 55 34 14.0 6.0
3/8" 10.0 0.39 62.0 31.0 42.3 42.5 75 45 15.8 6.0
1/2" 10.0 0.39 64.0 32.0 42.3 43.5 75 45 15.8 6.0
