26W Male AFK Brass Steam Solenoid Valve 220VAC High Pressure 1/2 Inch

Brand Name : AFK

Model Number : 2L-15

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Pressure : Low Pressure

Material : Brass

Power : Solenoid

Port size : 1/2"

Media : Water

Application : General

Standard or nonstandard : Standard

Connection : Male

Contact Now

DESIGN FEATURES OF SOLENOID VALVE

1. Direct acting

2. Fit for Liquid gas steam

3. Normally open closed.

4. Pipe size from 1/2' to 2' .

5. Service voltage : AC380V, 220V,110V,24V DC24,12V

6. Thread connector : G

7. Large flow.

8. Material: Brass

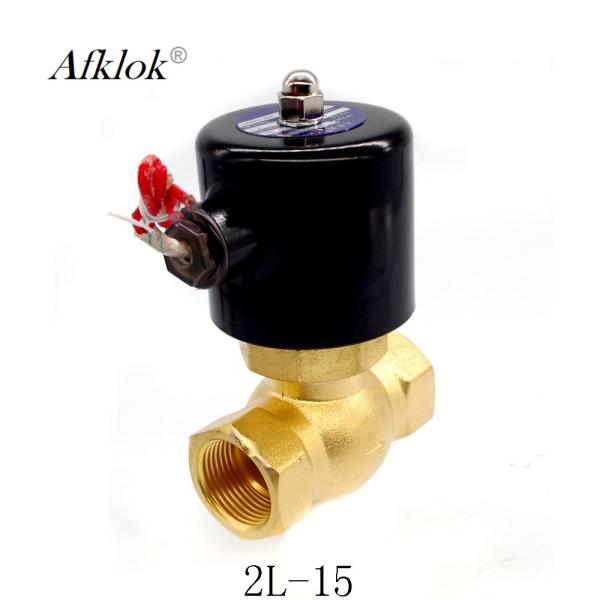

1.Model: 2L-15

2.Size: 1/2 inch

3.Thread: G

4.Operation: Pilot type

5.Operating pressure range: 0.2-1.6Mpa

6.Insulation grade: B class

7.Power: 26W

8.Material: Brass

9.Medium: Liquid gas steam <20CST

10.Response time: Open≤2 second ≤3 second

11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

Characteristic of Solenoid Valve

1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.

2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.

3.Install way: Media flow direction and on the arrow consistent. The coil vertically upward, the working media clean and no particle impurities.
